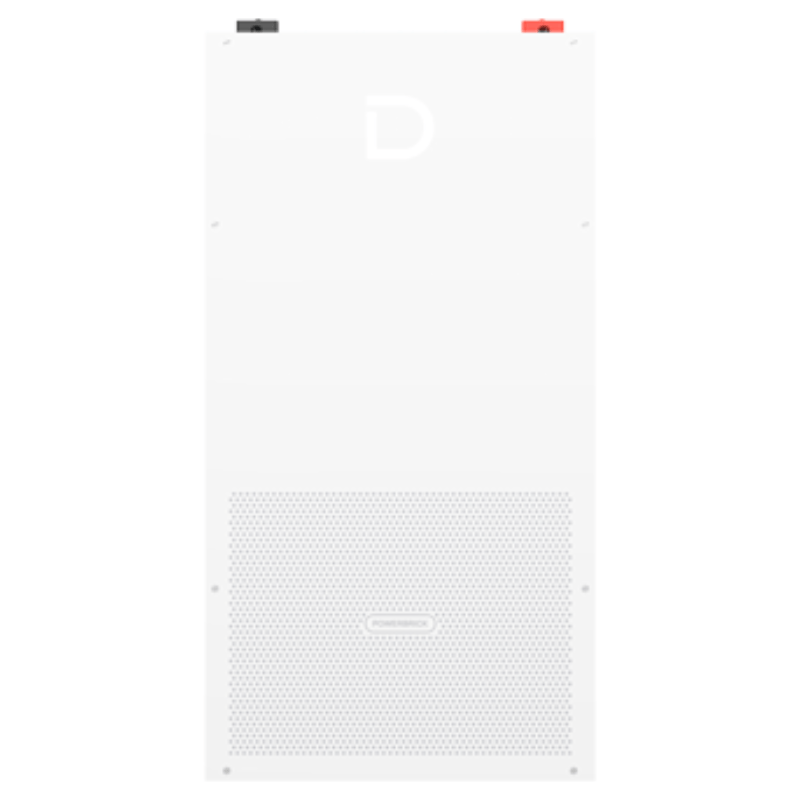

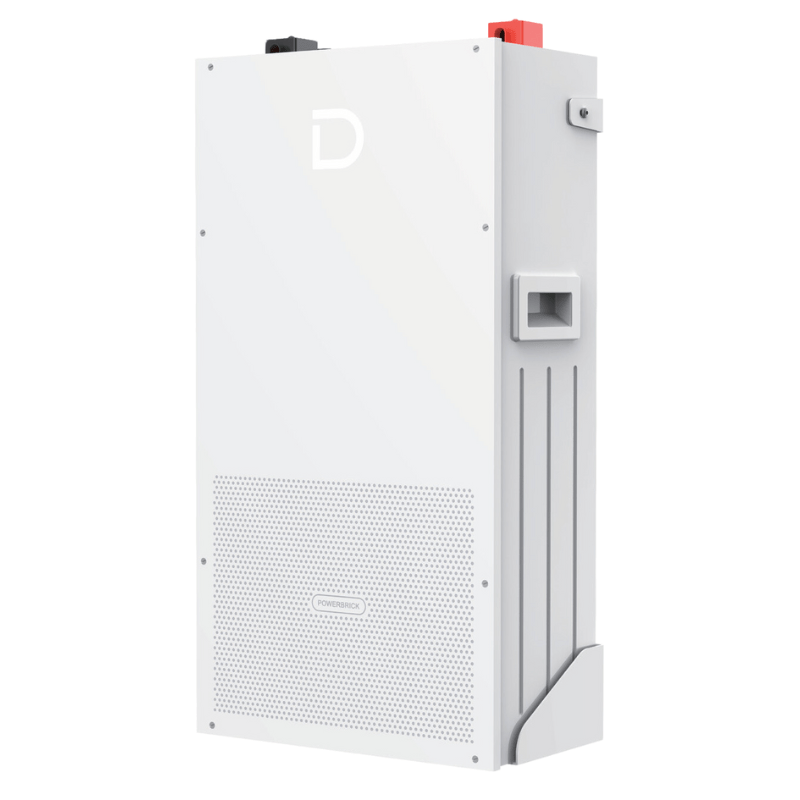

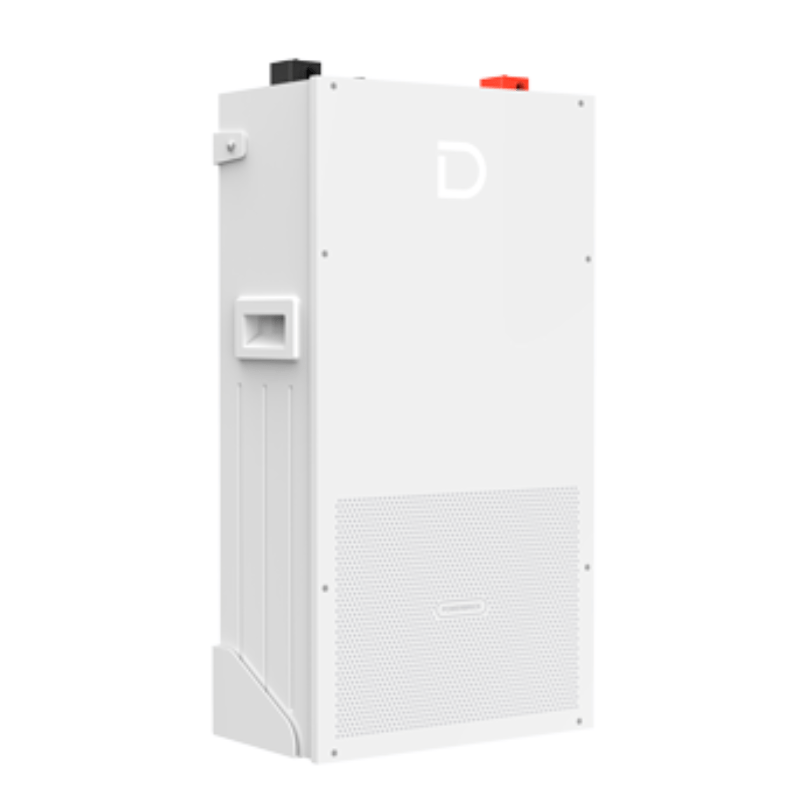

Dyness 14.336kWh Low Voltage Storage Battery

Dyness 14.336kWh Low Voltage Storage Battery

SKU DY-BA-14.3
Availability:
Out of stock

Please note that not all our products are kept in stock at our Boksburg branch; however, rest assured, all orders will be fulfilled within 2–5 working days.

Sold out
R 34,900.00 - R 34,900.00
R 34,900.00
R 34,900.00 - R 34,900.00
R 34,900.00

Overview

PowerBrick is a low-voltage product designed for household energy storage scenarios, with a stylish and elegant appearance. Featuring 280Ah long-cycle battery cores, it supports a maximum of 50 parallel units, and 14.3kWh~716.8kWh energy coverage, providing a safe, reliable, intelligent, and friendly experience.

Key Features

  • Flexible Expansion
    Up to 50 units in parallel, 14.3kWh--716.8kWh Capacity, no HUB

  • Easy installation
    60% less volume，25% less weight, Easy to move by 1 person

  • Ultra Safe
    Intelligent Fire Extinguishing System, React within 5 seconds (optional)

  • Long-term reliability
    LFP cells, long cycles, 10-year warranty

  • APP monitoring (optional)
    Reduce your reliance on the grid, lower electricity bills, and minimize your carbon footprint with this sustainable energy storage solution.

Specifications

  • Battery Type: LiFePO4
  • Nominal Battery Energy: 14.336kWh
  • Nominal Voltage/Capacity: 51.2V/280Ah
  • Recommended Charge/Discharge Current: 140A (0.5C)
  • Max. Charge Current: 200A
  • Max. Discharge Current: 200A
  • Depth of Discharge: 95%
  • Communication: CAN/RS485
  • Cycle Life: Unlimited cycles / 10 Years
  • Protection Level: IP20
  • Net Weight: 114Kg
  • Dimension[W*D*H]: 435*233*857mm (No wall -mounted bracket)
  • Maximum Parallel Modules: 50
  • Charging Temp. Range: 0～55℃
  • Discharging Temp. Range: -20～55℃
  • WIFl Module: Built-in WlFl module; APP OTA function
  • Fire Protection System: Optional Aerosol fire extinguisher
  • Certification & Safety Standard: UN38.3; CE
  • Compatible Inverters: SMA/Victron/ngeteam/Delios/Goodwe/Solis
    /Deye/SAJ/Voltronic/Sungrow etc

Downloads

Applications

  • Backup power during outages
  • Storage for solar energy systems
  • Load-shedding resilience
  • Efficient energy use in off-grid living

Why Choose Dyness PowerBrick?

Dyness is a trusted name in energy storage solutions, offering reliable and innovative products designed for efficiency, safety, and performance. The PowerBrick stands out for its durability, scalability, and ability to integrate with various energy systems.
