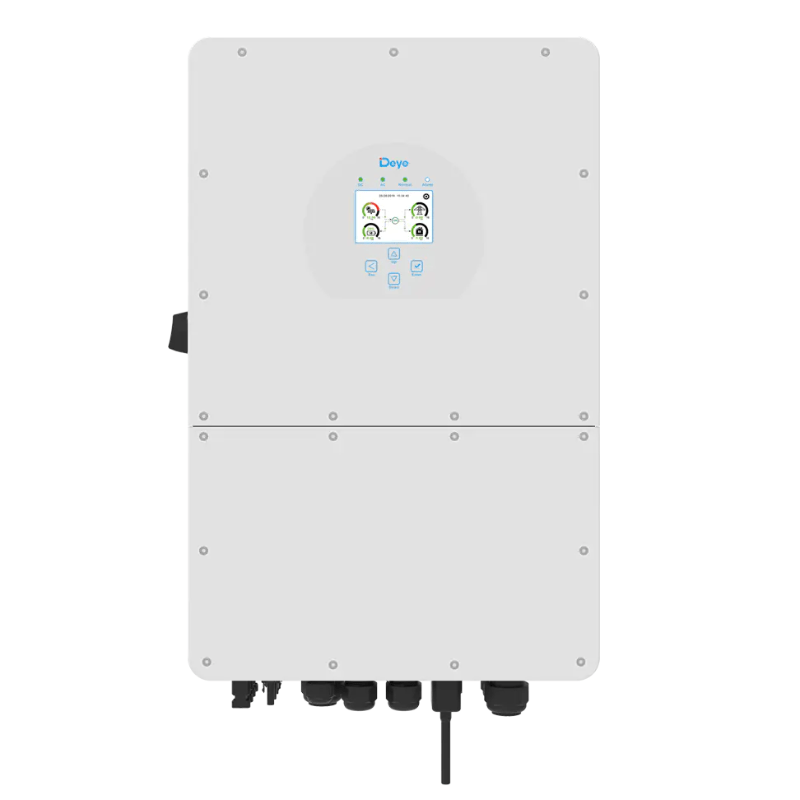

Deye 30kW Three-Phase Hybrid Inverter

The Deye 30kW Three-Phase Hybrid Inverter is a high-performance solution designed for commercial and industrial solar power systems. Engineered to deliver maximum efficiency and reliability, this inverter is perfect for large-scale installations that demand robust and consistent energy output. With support for high-voltage batteries and advanced MPPT technology, the Deye 30kW inverter ensures optimal energy conversion and seamless integration into diverse solar applications.

Key Features

• High Efficiency: With an impressive efficiency of up to 98.6%, the Deye 30kW inverter maximizes energy yield, ensuring more power from your solar panels.
• Multiple MPPTs: Equipped with 3 MPPTs (Maximum Power Point Trackers), this inverter optimizes energy harvesting from multiple solar panel arrays, even under varying sunlight conditions.
• Hybrid Functionality: The inverter supports both on-grid and off-grid operations, making it versatile for various energy needs. It also seamlessly integrates with high-voltage batteries, providing reliable backup power during grid outages.
• Smart Monitoring: The built-in smart monitoring platform allows for real-time data tracking and remote management, ensuring that your solar power system operates at peak performance.
• Durable Design: Engineered for longevity, the Deye 30kW inverter features a robust design with IP65-rated protection, making it suitable for harsh outdoor environments.

Specifications

• Rated Power: 30kW (Three Phase, HV Battery System)
• Battery Voltage Range: 160-800
• Max. Efficiency: 97.6%
• Number of MPPTs: 3
• Max. PV Input Voltage: 1000V
• Max. PV Input Power: 48000W
• Operating Temperature Range: -40 to +60℃
• IP Rating: IP65 (Dust and Water Resistance)
• Dimensions: 527mm x 894mm x 294mm (Excluding Connectors and Brackets)
• Weight: 80kg
• Standard warranty: 5 Years (If installed with a Deye battery, the inverter's warranty extends to 10 years.)
