Disconnect Battery 2 Pole 160A VOLTA (Blue)
Please note that not all our products are kept in stock at our Boksburg branch; however, rest assured, all orders will be fulfilled within 2–5 working days.
Application

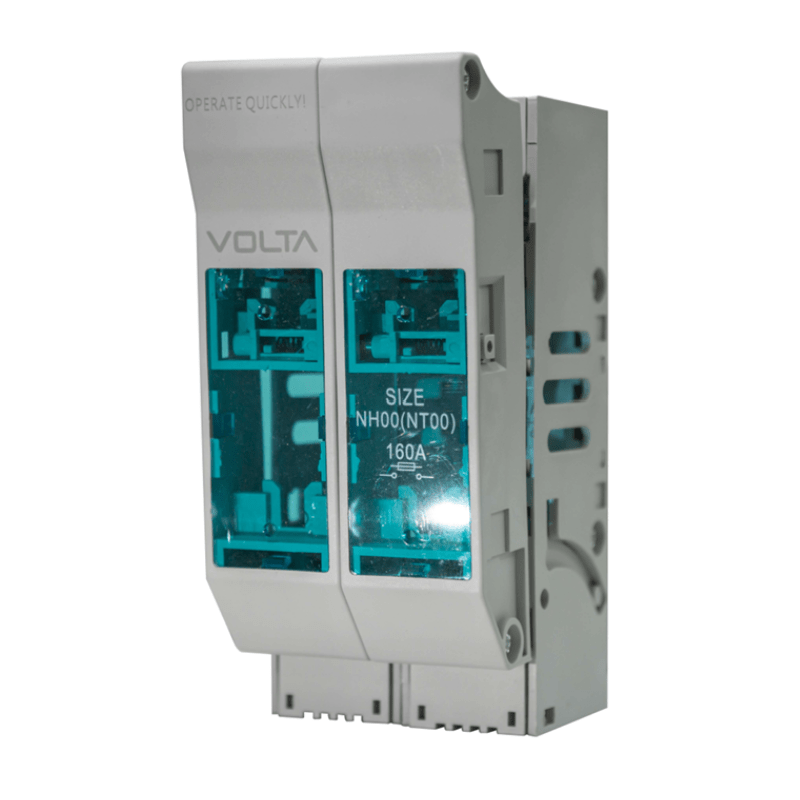

160A 2P 690V NH00 Panel Mount Din Fuse Disconnect
- GB 14048.3; IEC60947-3
- Rated voltage: 400Vac 690Vac; 250-1000Vdc
This fuse disconnecting switch is the first combination of current transformer and fuse switch. It is suitable for rated current 160A-630A and rated frequency 50/60HZ. This series of product modularity, small volume, safe and reliable use, high application in low voltage power distribution cabinet installed capacity density, showing very high economy, safety and contingency, not only has the switch and protection function, but also can be extended to other functions, not only is a kind of closed form is more important it is an intelligent system that is widely used in low voltage cable branch box, box type substation, factories, and other areas, is a trend in the future in the field of distribution.
The products meet the standards: GB14048.3, IEC60947-3
Feature
- Union can be closed and broken at the same time;The split can be made by single phase;
- The operation is safer , the core is installed in the handle, and can be directly used as contact blade;
- Beautiful and practical, seat and body disassembly convenient, and box installation fast, convenient construction;
- Reduce wiring, easy to increase the loop, increase the use rate of the box;
- Resin glass fiber base, V0 class flame retardant, shell protection level up to IP30;
- The latest products, the highest market utilization, customized bidding style;
- The instantaneous breaking operation is up to 100kA, with a load capacity of up to 1.3 times of rated current;
- It can add fuse monitor, signal switch and remote control module.
